Gridline 15
Gridline 15 boasts an innovative stainless steel clip design and simplifies the use of main runners and cross tees, allowing for a seamless and efficient ceiling installation. With just one clip, Gridline 15 accommodates both butt cut and joggled systems, providing flexibility like never before.
Gridline 15 has improved ergonomics and can be installed with less insertion force, enabling faster installation of ceiling grids. Its improved double stitch on both main runners and cross tees ensures superior grid torque, making it safer and easier to handle without the risk of damage.
Gridline 15 boasts an innovative stainless steel clip design and simplifies the use of main runners and cross tees, allowing for a seamless and efficient ceiling installation. With just one clip, Gridline 15 accommodates both butt cut and joggled systems, providing flexibility like never before.
Gridline 15 has improved ergonomics and can be installed with less insertion force, enabling faster installation of ceiling grids. Its improved double stitch on both main runners and cross tees ensures superior grid torque, making it safer and easier to handle without the risk of damage.
- Innovative clip design: Connect butt cut and joggled cross tees to Gridline 15 main runners with a positive and audible click.
- Quick release tab: Swiftly demount cross tees to reposition or access services with the convenient quick release tab.
- Double stitched for better grid torque: The improved double stitching of Gridline 15 makes it resistant to twisting and deformation during installation and demounting.
- Available in colour: Infuse subtle design flair into ceilings with colour grid capping. Gridline 15 offers a range of colours, including Global White, Silver RAL 9006, and Black RAL 9017, as well as 34 other options from the Zentia Colour Collection.
- 30-year system guarantee: Gridline 15 comes with a 30-year system guarantee when ordered alongside Zentia’s suspended ceiling tiles.
- Made in the UK: Gridline 15 is manufactured at our factory in Gateshead, Tyne and Wear.
Gridline 15 Main Runners
Gridline 15 Main Runners are an integral part of the exposed 15mm grid system for suspended ceilings. SureLock clips ensure a secure connection, enhancing alignment and simplifying disconnection. The peak form design not only provides greater strength and stability but also facilitates on-site cutting.

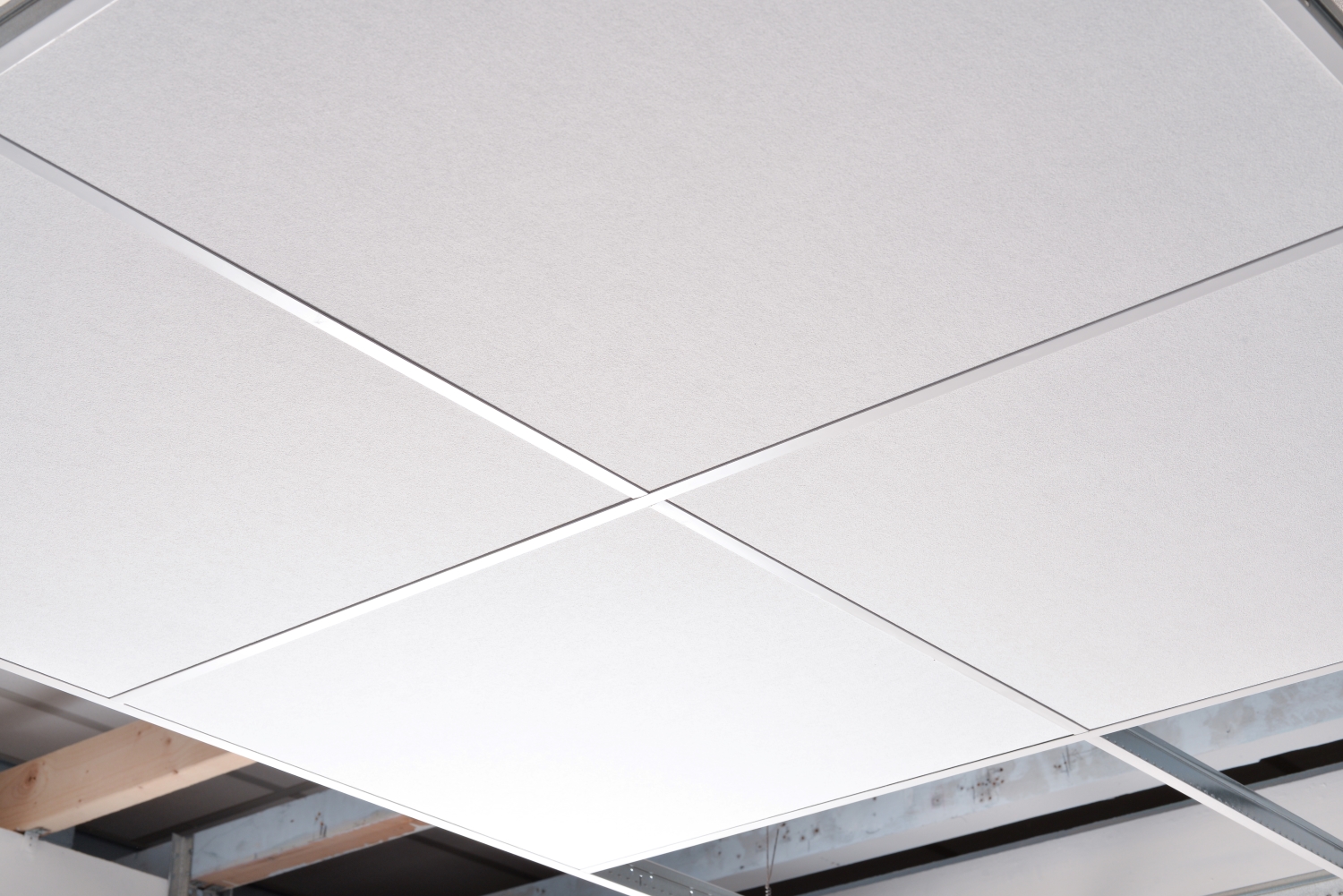

Zentia Oplia hA Board 15mm grid angle
Gridline 15 Suspended Ceiling Grid
Technical Performance
Compatible Suspended Ceiling Tiles
Gridline 15 is compatible with Tegular15 edge ceiling tiles and specific board edge tiles.
Sustainability
Featuring 25% recycled content, Gridline15 is also recyclable.
Fire Safety and Technical Performance
In Global White, Silver RAL 9006, and Black RAL 9017, Gridline 15 is certified Euroclass A1 EN 13501-1. For other colour options, it is certified Euroclass A2-s2, d0 EN 13501-1 when installed.
Gridline 15 Butt Cut Cross Tees
Engineered with a stainless steel metal clip, Gridline 15 Butt Cut Cross Tees offer easier installation, improved alignment, and a positive audible click connection.
Zentia Oplia hA Board 15mm grid angle
Gridline 15 Suspended Ceiling Grid
Technical Performance
Compatible Suspended Ceiling Tiles
Gridline 15 is compatible with Tegular15 edge ceiling tiles and specific board edge tiles.
Sustainability
Featuring 25% recycled content, Gridline15 is also recyclable.
Fire Safety and Technical Performance
In Global White, Silver RAL 9006, and Black RAL 9017, Gridline 15 is certified Euroclass A1 EN 13501-1. For other colour options, it is certified Euroclass A2-s2, d0 EN 13501-1 when installed.
Gridline 15 Joggled Cross Tees
Equipped with a stainless steel clip for secure connections to main runners, Gridline 15 Joggled Cross Tees enhance alignment, simplifying ceiling installation and disconnection.
Zentia Oplia hA Board 15mm grid angle
Gridline 15 Suspended Ceiling Grid
Technical Performance
Compatible Suspended Ceiling Tiles
Gridline 15 is compatible with Tegular15 edge ceiling tiles and specific board edge tiles.
Sustainability
Featuring 25% recycled content, Gridline15 is also recyclable.
Fire Safety and Technical Performance
In Global White, Silver RAL 9006, and Black RAL 9017, Gridline 15 is certified Euroclass A1 EN 13501-1. For other colour options, it is certified Euroclass A2-s2, d0 EN 13501-1 when installed.
